Electric motor Kit EVO LITE 42 v
As the 2026 evolution of the ULTRA EVO STG, we are delighted to present the economical LITE version, the EVO STG LITE 1 hp, a complete and ultra-compact 1 hp electric propulsion system designed specifically for modern kayak fishing and adventure tourism. Paired with a 4-blade propeller and operating at a maximum voltage of 42V, this 1hp motor really packs a punch...
It is a brushless electric motor designed for kayaking, offering efficient and reliable performance. It features a remote control system with a digital display, enabling precise control and real-time data monitoring. For added safety, it is equipped with a man-overboard system, which automatically stops the motor in the event of a fall.

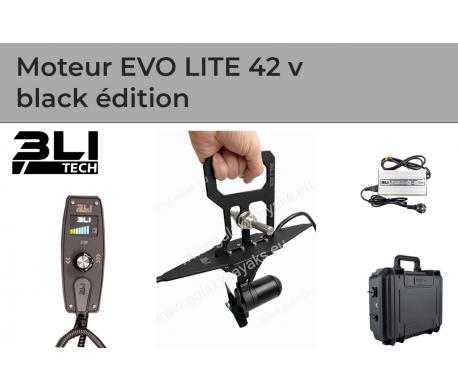

COMPLETE CENTRAL MOTOR KIT: Motor, battery in its waterproof case, digital speed controller with circuit breaker and charger. All connections are waterproof, and the whole unit is mounted on a marine-grade black aluminium bracket.
The EVO stg motor is also available in a 3 hp version on this page, in a 24 V 1100 W battery version here and the MAX 42 V 1300 W battery version here
The LITE model is compatible with the Wildcat, FX3 and Hawai tandem, the older Alboran FX1, 2 and Explora, Hobie models and, generally, kayaks with a stepper motor.
Please note, however, that the 1 hp motor is not powerful enough / recommended for moving a weight of over 110–120 kg on the water (heavy kayak or heavy paddler); instead, opt for the EVO 24 or 42 MAX version.
3Li Ultra EVO STG PPK 1 HP 42 V 1,100 Wh Motor
The Ultra Evo STG is a brushless electric motor designed for kayaks, offering efficient and reliable performance. It features a remote control system with a digital display, enabling precise control and real-time data display. For added safety, it is equipped with a ‘man overboard’ system, which automatically stops the motor in the event of a fall.

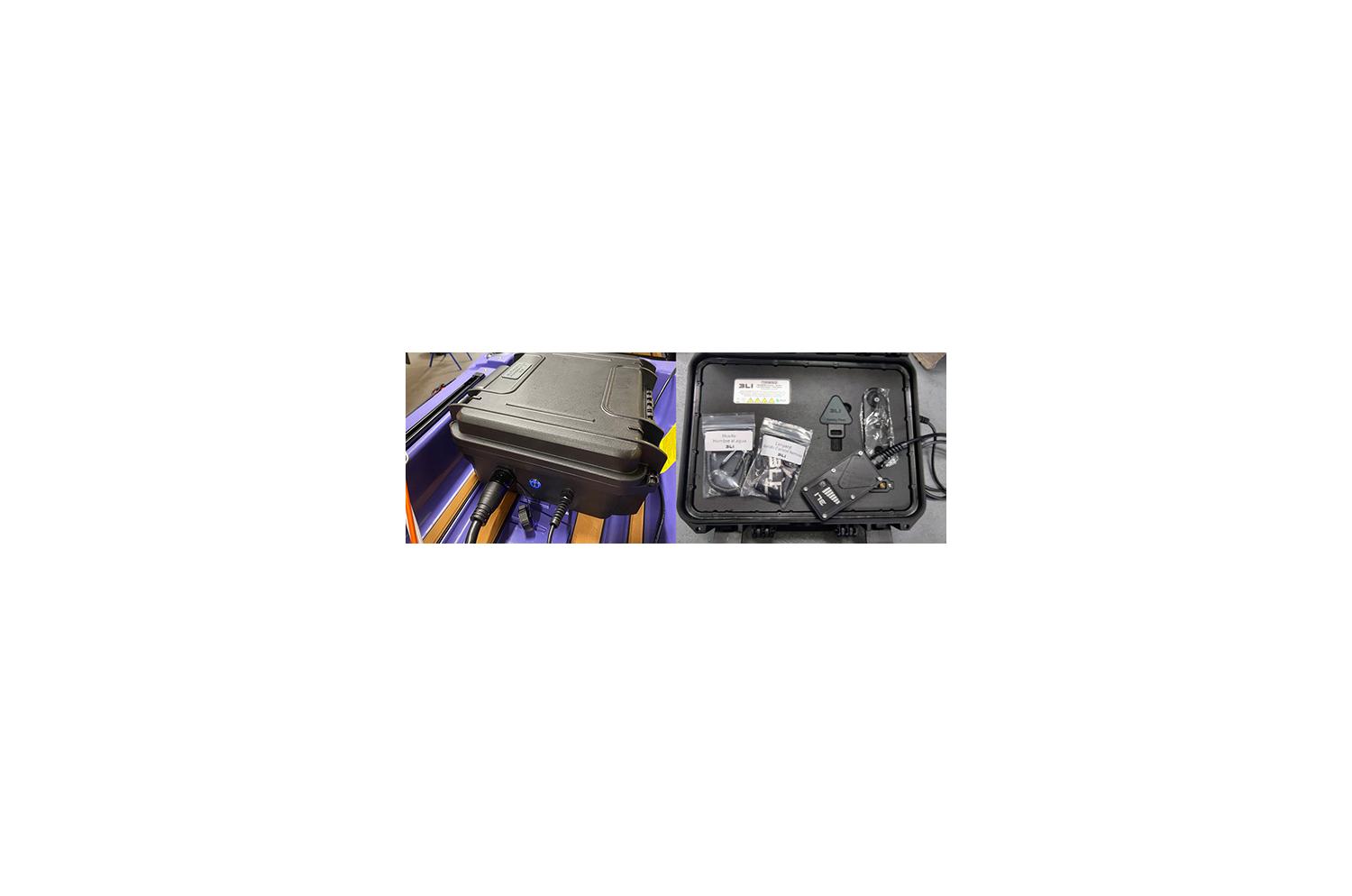

The batteries are housed in IPX67-certified enclosures, guaranteeing total protection against dust and temporary immersion in water. All connections are waterproof, ensuring durability and proper functioning in a marine environment. The motor is mounted on a sturdy marine-grade aluminium bracket, which is corrosion-resistant and designed to withstand saltwater conditions.
Case dimensions
Internal dimensions: 300 x 225 x H132 (11.81 x 8.86 x H5.20)
External dimensions: 336 x 300 x H148 (13.23 x 11.81 x H5.83)
Specification table
Speed (knots) Speed (km/h) Power consumption (W) (approx.) Runtime (hours) (approx.) Range (km) (approx.)
Speed (knots) Speed (km/h) Power consumption (W) (approx.) Runtime (hours) (approx.) Distance (km) (approx.)
2 3.7 125 13.2 62
3 5.6 187 8.8 62.1
4 7.4 323 5.1 47.9
*The values in the table correspond to tests carried out under optimal conditions on an Alboran FX3 kayak
LITE MODEL AVAILABLE ONLY IN BLACK EDITION.
The EVO stg motor is also available in a 3 hp version on this page in the 24 V 1100 W battery version here and the MAX 42 V 1300 W battery version here
We have several mounts available to make it compatible with the Wildcat, FX3 and Hawai tandem, as well as the older Alboran FX1, FX2 and Explora models. the Wahoo, and also a universal stepper shaft mount for this model. Please note, however, that the 1 hp motor is not powerful enough / recommended for moving a weight of over 110–120 kg on the water (heavy kayak or heavy paddler); opt instead for the EVO 24 or 42 MAX version
